Stepped Machine Sand System (Dry Method)

Theoretical maximum feeding capacity: 60MPa compressive strength limestone as raw material, the 3.0 production fineness modulus mechanism sand feeding capacity.

Actual feed capacity, and production capacity, will change due to the lithology of the raw materials, grain size specifications and the fineness modulus of the mechanism sand.
Contact Us

China's leading manufacturer of industrial intelligent equipment

Crusher Equipment
Sand Making Equipment
Auxiliary Equipment
Crushing Systems
Belt Conveyor
Parts

Contact Us

+8619863297988

sales@snksancn.com

Our Products

Product Introduction

Theoretical maximum feeding capacity: 60MPa compressive strength limestone as raw material, the 3.0 production fineness modulus mechanism sand feeding capacity.

Actual feed capacity, and production capacity, will change due to the lithology of the raw materials, grain size specifications and the fineness modulus of the mechanism sand.

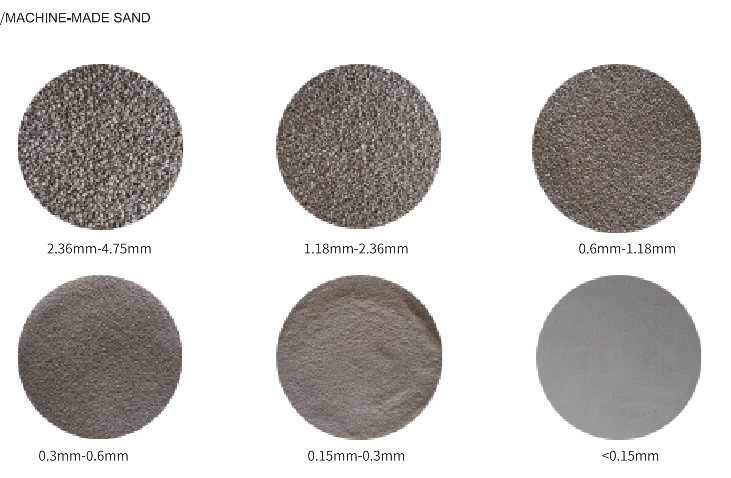

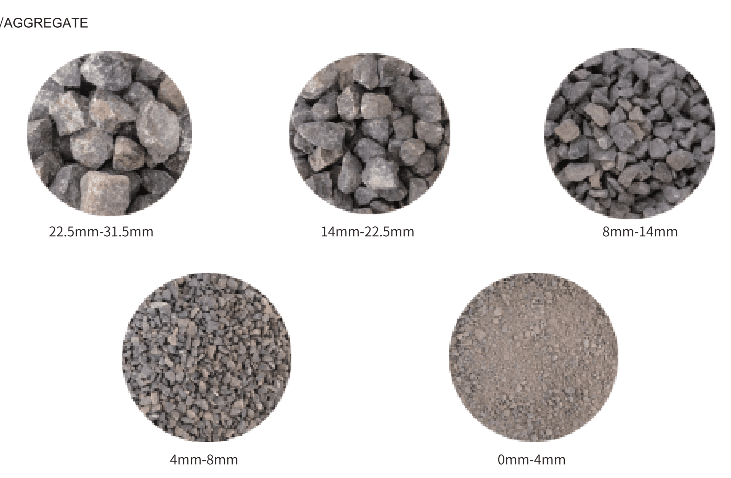

Final Products

Specifications

Name

Model

Handling Capacity per Set

Configured Power per Set

Qty.Of Configured Device

RV sand maker



RV-S8



150-300t/h



400/500kw

1(set)

Probability screen



GLS2056

220-260t/h



7.5kw*2

1(set)

Professional Sand and Aggregate Powder Concentrator



FFX1500



320-380t/h



250kw+30kw

1(set)

Gas Tank Pulse Bag

Dust Collector

LCMD-750

5000m³/h

75kw

1(set)

Wet Mixing Machine

BJS-250

150-300t/h



22kw

2(set)

Our Cases

Related Cases

Discover how we've solved similar challenges for other clients

Benchmarks of Excellence in Every Aspect

Project Location: Shenshan, Anhui Province

Production: 70 million tons per year

Project Description:

The Shenshan limestone mine's product plan is primarily building stone, supplemented by cement stone. A stone production line with an annual output of 70 million tons will be established, leveraging the Yangtze River's prime waterway. Finished building stone will be processed at the mine site and shipped via the Yangtze River for sale to the construction materials market in the Yangtze River Delta and downstream regions.

Shandong United Wangchao Cement 1000TPH Sand and Gravel Aggregate Production Line

Project Location: Zaozhuang City, Shandong Province

Production: 1000-1200 tons per hour

Project Description:

This project, using the Xinjinshan EPC general contracting method, will construct a 1200-ton-per-hour short-process sand and gravel production line with a single output. The entire production line will have a 7.5-kilometer long-distance conveying process and a construction period of six months. This will be an energy-saving, environmentally friendly, high-end, intelligent, green, and premium sand and gravel aggregate production line.

Henan Yuzhou Guotai Building Materials 3000TPH Premium Aggregate Production

Project Location: Yuzhou, Xuchang City

Production: 3,000 tons per hour / 10 million tons per year

Project Description:

The Guotai Building Materials production line has an hourly output of 3,400 tons. The two sides will also deepen their cooperation and expand their scope, jointly promoting the construction of a new building materials industrial park, and transforming the production line into a national green mining demonstration base, thereby promoting the development of the sand and gravel industry through concrete actions.
